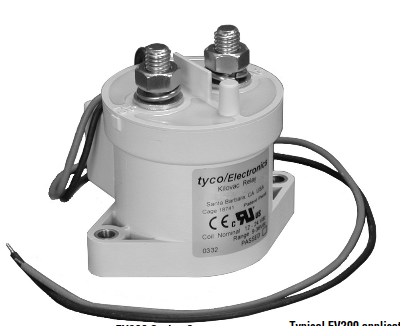

Tyco EV200AAANA BMS Contactor 12-24VDC 500A
$177.95
Typical EV200 applications include battery switching and back-up, DC voltage power control, circuit protection and safety. (9-36V Coil voltage)
37 in stock (can be backordered)
For medium size BMS safety interlock application, the EV200 series is hard to beat, with a 500 amp capacity.
Product Facts
Designed to be the smallest,lightest weight, lowest cost sealed contactor in the industry with its current rating (500+A carry, 2000Ainterrupt at 320VDC).Built-in coil economizer – only1.7W hold power @ 12VDC (9-36V Coil voltage) and it limits back EMF to 0V. Models requiring extenal economizer also available. Optional auxiliary contact for easy monitoring of power contact position.Hermetically sealed – intrinsically safe, operates in explosive/harsh environments with no oxidation or contamination of coils or contacts,including long periods of non-operation.Versatile coil/power connections.CE marked for EC applications. AIAG QS9000 designed, built and approved
| Weight | 0.5 kg |
|---|---|
| Dimensions | 5 × 5 × 10 cm |

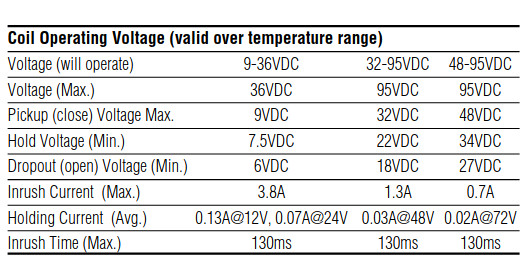

| Coil Voltage | 9-36V |
